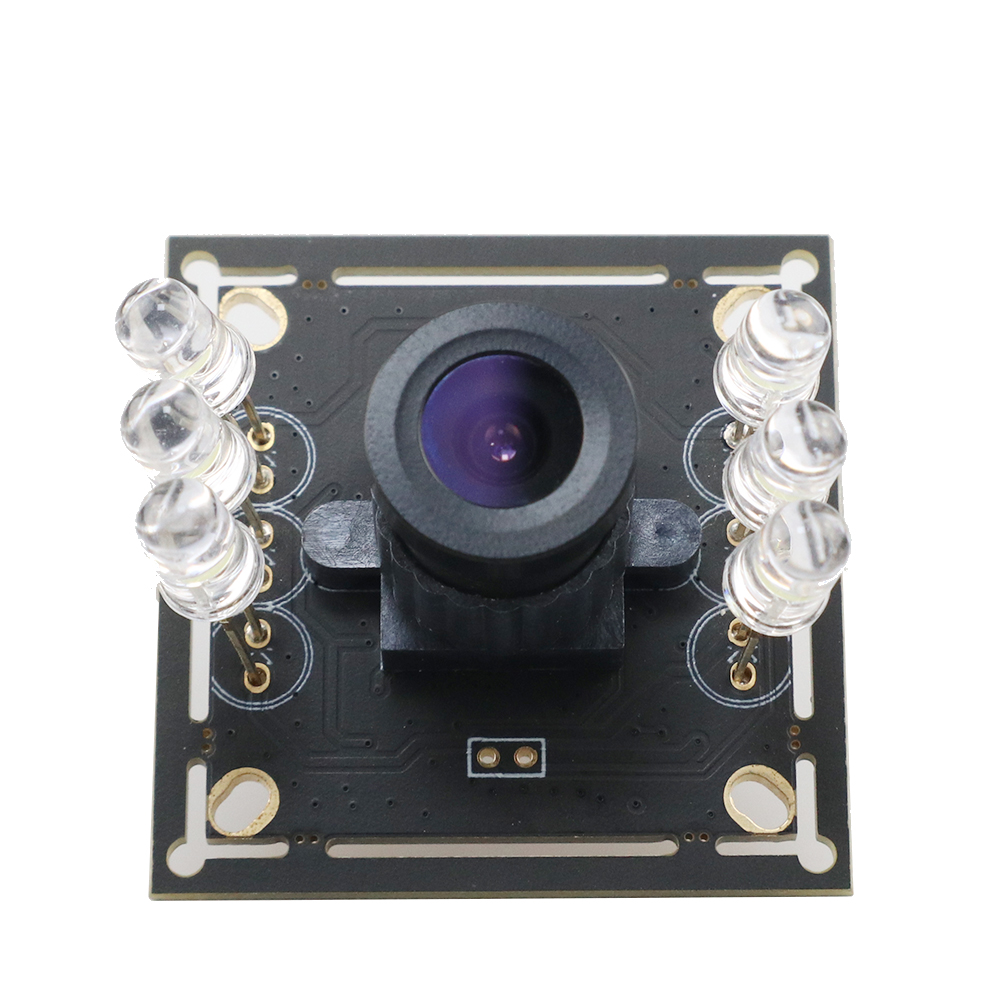

1 Mega Pixel H62 IR Camera Module USB with 6pc LED 850nm Free Driver
Product Overview
The H62 infrared camera module is a high-performance 1-megapixel USB infrared imaging device integrated with 6 pieces of 850nm infrared LEDs, specifically designed for night vision monitoring, industrial inspection, and security applications. This module features a plug-and-play design that requires no additional driver installation, providing users with a convenient infrared imaging solution.
Key Features
🔍 High-Definition Imaging
- 1 Megapixel Resolution: Delivers clear image quality to meet various application requirements
- H62 Sensor: Professional-grade image sensor ensuring excellent imaging performance
- Optimized Optical Design: Provides stable image output under various lighting conditions
💡 Professional Infrared Illumination
- 6 pieces 850nm IR LEDs: Provides powerful and uniform infrared illumination
- 850nm Wavelength: Invisible to human eyes, suitable for covert surveillance applications
- Long-life LEDs: Over 50,000 hours working lifespan
- Low Power Design: Effectively controls heat generation, extending device service life
🔌 Plug & Play
- USB 2.0 Interface: Standard USB connection with strong compatibility
- Driver-free Design: Supports mainstream operating systems including Windows, Linux, Mac OS
- UVC Protocol: Standard Video Class protocol, no specialized driver installation required
- Hot-plug Support: Safe connection and disconnection while system is running
Technical Specifications
| Specification | Parameter |
|---|---|
| Sensor Model | H62 CMOS |
| Resolution | 1 Mega Pixel (1280×720) |
| Interface Type | USB 2.0 |
| IR LEDs | 6pcs 850nm |
| Field of View | 65°(H) × 50°(V) |
| Minimum Illumination | 0 Lux (IR mode) |
| Operating Voltage | 5V DC (USB powered) |
| Operating Current | ≤380mA |
| Operating Temperature | -10°C ~ +50°C |
| Storage Temperature | -20°C ~ +70°C |
| Relative Humidity | ≤85% (non-condensing) |
Product Advantages
🌙 24/7 Monitoring
- 24-hour Continuous: Color imaging during day, infrared imaging at night
- Zero Lux Operation: Clear imaging even in complete darkness
- Automatic Switching: Automatically switches day/night mode based on ambient light
🛠 Easy Integration
- Standard Interface: Uses standard USB interface, easy for system integration
- Compact Design: Small module size suitable for embedding in various devices
- Flexible Installation: Multiple mounting options to adapt to different application scenarios
💰 Cost-Effective
- Driver-free: Reduces system integration cost and complexity
- Low Power Consumption: USB power supply sufficient, no additional power source needed
- Long Lifespan: Industrial-grade design ensures long-term stable operation
Application Scenarios
🏠 Home Security
- Indoor/outdoor surveillance cameras
- Smart doorbell systems
- Baby/pet monitoring devices
- Smart home security systems
🏭 Industrial Applications
- Production line quality inspection
- Equipment status monitoring
- Warehouse management systems
- Automated visual inspection
🚗 Automotive Systems
- Dash cameras
- Backup camera systems
- Driver fatigue monitoring
- In-vehicle surveillance systems
🏥 Professional Fields
- Medical equipment vision systems
- Scientific research monitoring
- Educational training equipment
- Robot vision navigation
Installation & Usage
📦 Package Contents
- H62 IR Camera Module × 1
- USB Cable × 1
- Mounting Bracket × 1
- User Manual × 1
🔧 Installation Steps
- Connect Device: Connect the camera module to computer using USB cable
- System Recognition: System automatically recognizes and installs standard UVC driver
- Software Testing: Open any video software to test image output
- Mounting: Use bracket for fixed installation as needed
⚙️ Parameter Adjustment
- Brightness Control: Adjust image brightness through software
- Contrast: Real-time contrast adjustment support
- Exposure Control: Auto/manual exposure mode switching
- IR Intensity: LED brightness adjustable (with supporting software)
Compatibility
💻 Operating Systems
- Windows 7/8/10/11
- Mac OS X 10.6 and above
- Linux Ubuntu/CentOS and other mainstream distributions
- Android 4.0+ (with OTG support)
📱 Software Compatibility
- Windows Camera App
- VLC Media Player
- OBS Studio
- Skype/Zoom and other video conferencing software
- Custom developed applications
