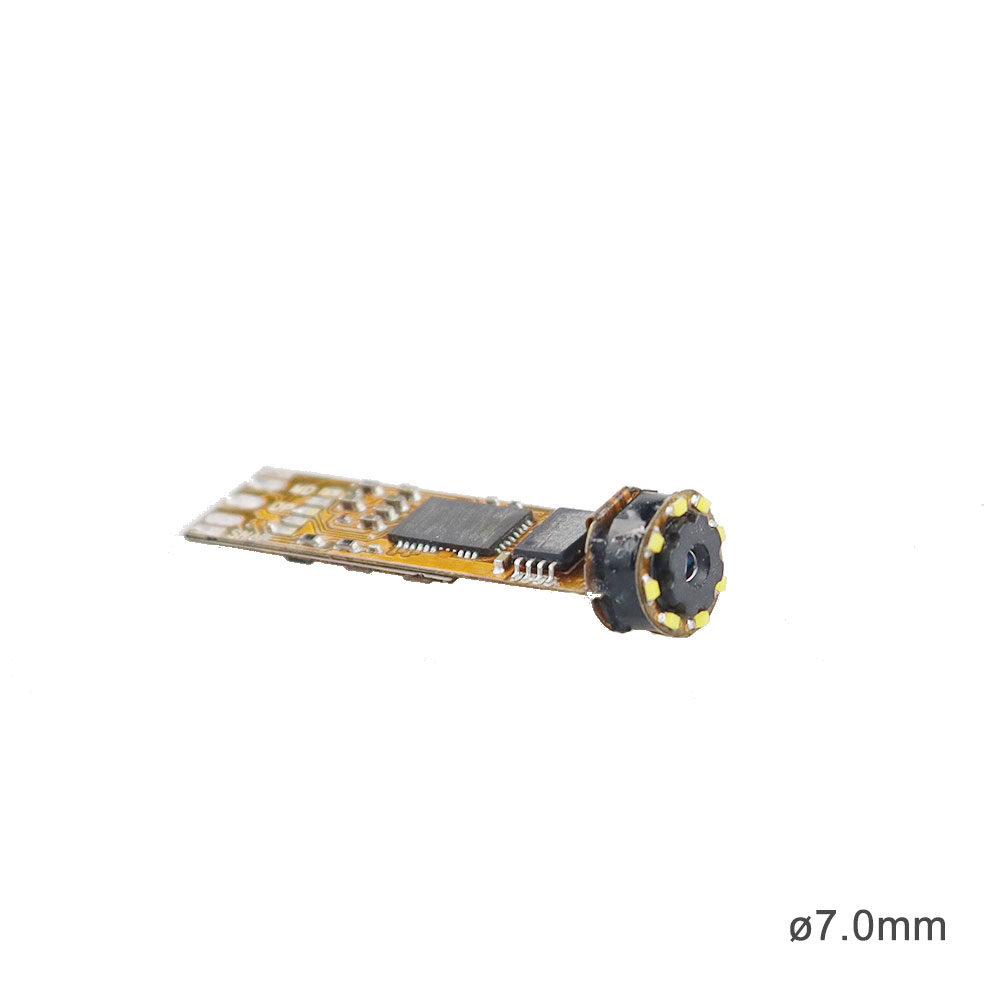

7mm 2MP 1080P Endoscope Camera Module USB with 8pc LEDs for Industrial Application
Product Overview
Discover precision in miniature form with our ultra-compact 7mm 2MP 1080P Endoscope Camera Module. Engineered specifically for industrial applications, this high-performance USB-powered endoscopic camera combines exceptional image quality with professional-grade LED illumination. The ultra-slim 7mm diameter design enables access to the most confined spaces while delivering crystal-clear Full HD video and still images for comprehensive visual inspection tasks.
Key Features
🔍 Ultra-Compact Design
- 7mm Diameter: Smallest form factor for accessing tight spaces and narrow passages
- 2MP High Resolution: Sharp 1920×1080 Full HD imaging capability
- Flexible Construction: Bendable cable design for navigating complex geometries
- Waterproof Rating: IP67 protection for wet and harsh environments
💡 Professional LED Illumination
- 8-piece LED Array: Evenly distributed high-brightness LEDs for uniform lighting
- Adjustable Brightness: Variable LED intensity control for optimal illumination
- Long Lifespan LEDs: Over 100,000 hours operational life
- Heat Management: Advanced thermal design prevents overheating in confined spaces
🎥 Superior Image Quality
- 1080P Full HD: Crystal-clear video recording and live streaming
- 2 Megapixel Sensor: High-resolution still image capture
- Auto Focus: Automatic focusing for sharp images at various distances
- Color Accuracy: True-to-life color reproduction for accurate inspection results
🔌 USB Connectivity
- USB 2.0 Interface: Universal compatibility with computers and mobile devices
- Plug & Play: No driver installation required for immediate use
- Real-time Streaming: Live video feed for immediate inspection feedback
- Digital Recording: Direct recording to computer storage systems
Technical Specifications
| Specification | Parameter |
|---|---|
| Camera Diameter | 7mm |
| Image Sensor | 2MP CMOS |
| Video Resolution | 1920×1080 (1080P Full HD) |
| Photo Resolution | 1600×1200 |
| Frame Rate | 30fps @ 1080P |
| Interface | USB 2.0 |
| LED Quantity | 8 pieces |
| LED Type | High-brightness white LEDs |
| Illumination Control | 6-level brightness adjustment |
| Focus Range | 3cm to 5cm (optimal) |
| Field of View | 70° viewing angle |
| Cable Length | 1m, 2m, 3m, 5m options |
| Cable Material | Medical-grade flexible polymer |
| Waterproof Rating | IP67 |
| Operating Voltage | 5V DC (USB powered) |
| Power Consumption | ≤2.5W |
| Operating Temperature | -10°C to +70°C |
| Storage Temperature | -20°C to +80°C |
| Humidity Tolerance | 15%-85% RH |
Industrial Applications
🔧 Mechanical Inspection
- Engine Diagnostics: Internal combustion engine cylinder and valve inspection
- Pipe Inspection: Plumbing, HVAC, and industrial pipeline examination
- Machinery Maintenance: Internal component inspection without disassembly
- Bearing Analysis: Rolling bearing race and ball condition assessment
⚡ Electrical Systems
- Wiring Inspection: Cable routing and connection verification in tight spaces
- Control Panel Examination: Internal electrical cabinet component inspection
- Circuit Board Analysis: PCB trace and component examination
- Conduit Inspection: Electrical conduit blockage and damage assessment
🏭 Manufacturing Quality Control
- Weld Inspection: Internal weld seam quality verification
- Casting Analysis: Internal cavity and defect detection in cast parts
- Assembly Verification: Component placement and connection confirmation
- Surface Finish Assessment: Internal surface quality evaluation
🚗 Automotive Industry
- Engine Block Inspection: Cylinder bore and valve seat examination
- Transmission Analysis: Internal gear and component condition assessment
- Brake System Inspection: Brake line and caliper internal examination
- Body Panel Analysis: Hidden corrosion and damage detection
✈️ Aerospace Applications
- Turbine Inspection: Jet engine blade and combustion chamber examination
- Structural Analysis: Aircraft frame and joint inspection
- Fuel System Inspection: Fuel line and tank internal examination
- Avionics Assessment: Electronic system component verification
🏗️ Construction & Infrastructure
- Concrete Structure Inspection: Rebar placement and void detection
- Wall Cavity Examination: Insulation and wiring inspection
- Foundation Analysis: Underground structure condition assessment
- Bridge Inspection: Internal structural component examination
